As nobody is immune to awkwardness and the Retina display on iPhone 4 is fragile, here's a tutorial to replace the screen of the iPhone 4 .
So it can seem complex, but with patience and by following this step by step guide , you will earn money doing it yourself replacing the screen of your smartphone with price is not excessive.
To replace the screen on your iPhone 4, you need:
- screwdriver Pentalobe
- a screwdriver
- a plastic spatula to pry
- one screen iPhone 4 black or white iPhone 4 screen available on the website MoniPomme.com to€ 39.99 (15% coupon at end of article)
Council : Note the location of each screw, there are different lengths!
Tutorial: iPhone 4 screen replace its
- remove the sim card and iPhone Support
- Remove the 2 screws Phillips or Pentalobe (according to the age of your iPhone 4)
- Drag up the rear of the iPhone and remove
- Remove the Phillips screw fixing 2.5 mm connector of the battery (there may be two screws in some models) and gently lift the connector
- Lift and remove the battery using the plastic tab: there is glue, gradually pull
- Remove the following two screws that hold the cover in steel:
- 1.2 mm Phillips screws
- 1.6 mm Phillips screws
- Carefully lift the connector from the motherboard: take care of this jack can tear
- Lift the lower antenna connector from its holder on the system board
- Remove the Phillips screw 1.9 mm
- Remove the five screws around the antenna Wifi
- 2.3 mm Phillips screws
- 2 x 1.6 mm Phillips screws
- Phillips 1.4 mm
- 4.8 mm Phillips screws
Advice : when reassembling start with screw 4.8 mm to 2.3 mm and to avoid placing it elsewhere and damage the LCD screen!
- Slightly lift the antenna Wi-Fi on the edges
Tip: When reassembling degrease well Wifi antenna for not interfering.
- Lift the socket of the camera and remove the rear camera
- Remove the white sticker (control humidity)
- Remove the 2.4 mm Phillips screw that holds the plastic tab
- Gently pry the 5 connectors on the motherboard
- Use a small screwdriver to remove the retaining arm near the headphone jack
- Carefully remove the motherboard iPhone 4, taking care not to damage the pin marked in red
- Remove the screw holding the 2.4mm speaker and remove
- Remove the two screws securing the vibrator:
- 6 mm Phillips screws
- 1.4 mm Phillips screws
- Remove the vibrator
- Remove the 1.5 mm Phillips screws next to the headphone jack

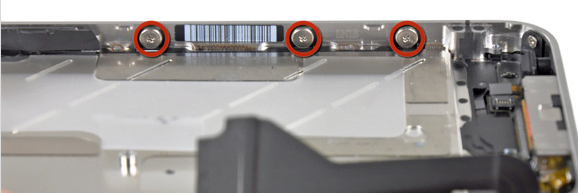

- Remove the 3 screws 1.5 mm volume buttons on the iPhone, keep the washers!
- Remove the screw of 1.5 mm close to the microphone

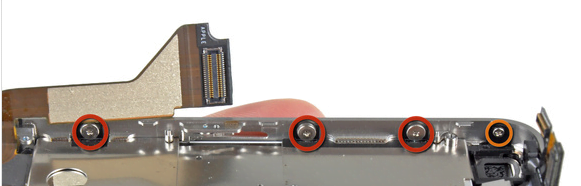

- Remove the screws of 1.5 mm remaining close to the water side of the dock connector SIM card
- Insert a plastic spatula to gently lift the glass and remove the whole constituting the screen of the iPhone 4
Council : attention the Home button and paste that can be damaged remain
Congratulations, you just remove the screen of your iPhone 4 to reassemble just follow this tutorial backwards.
If you do not feel capable of replacing your screen, you can send your smartphone service repair iPhoneSite MoniPomme.com .
